S-4002 ISBH+I 30°
– Imitation Sleeve Buttonhole with Electronic Feeding S-4002 ISBH 30° Angle Indexer
- patented AMF Reece mechanism
- fully electronically controlled chainstitch buttonhole machine
- designed for sewing purely decorative and non-functional buttonholes on jacket sleeves
- chainstitch imitation sleeve buttonholes machine is programmable to sew automatically up to 8 imitation buttonholes
- machine is programmable on the control panel
- made in Czech Republic

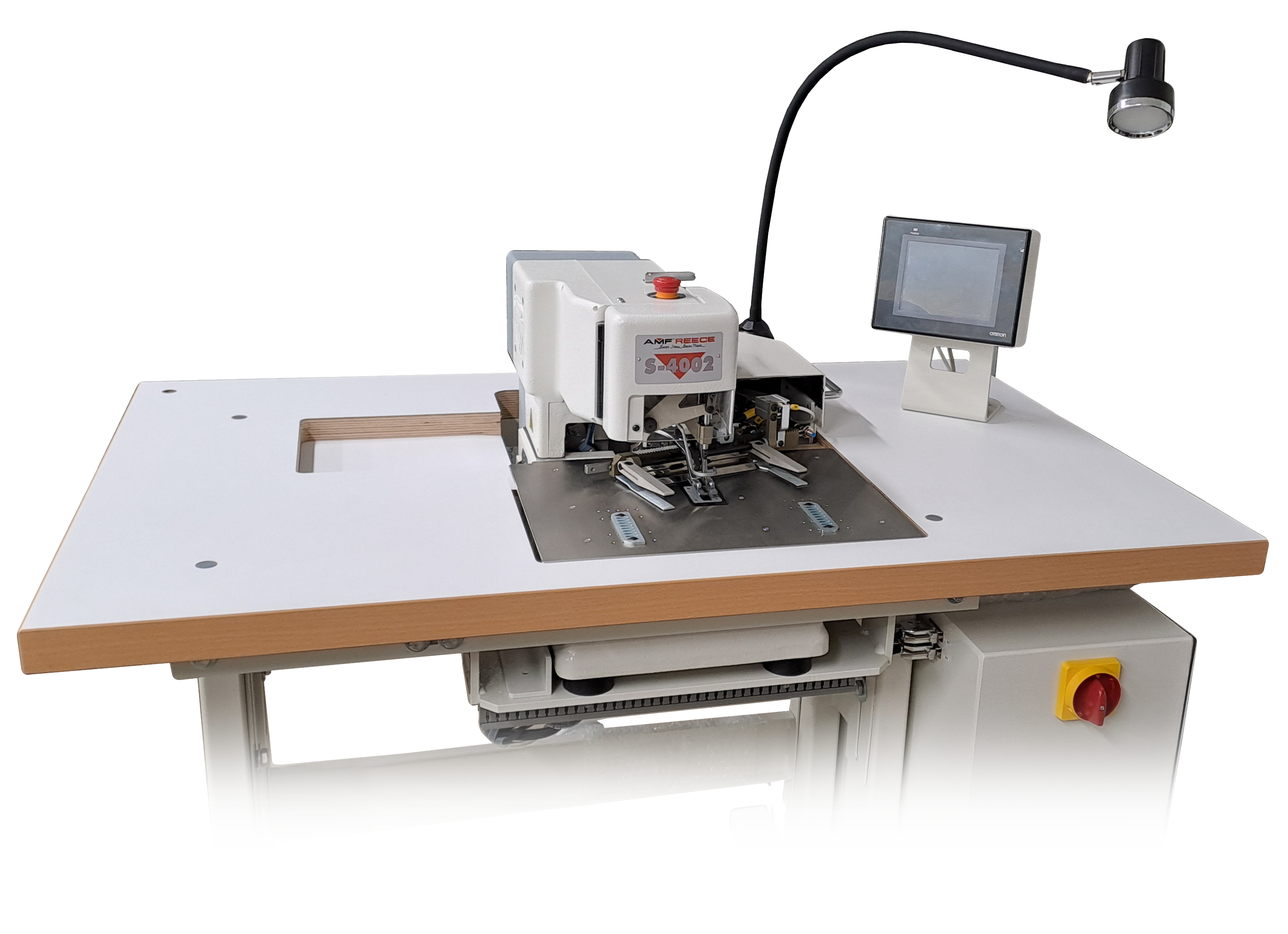

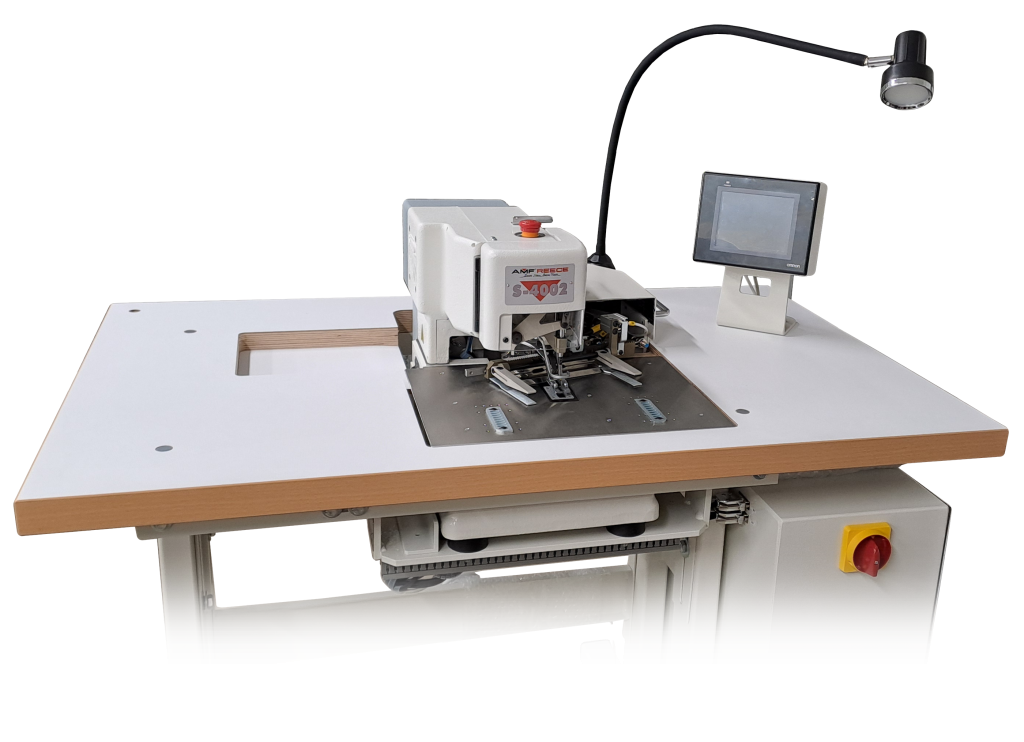

The S-4002 ISBH is a fully electronically controlled chainstitch buttonhole machine designed for sewing decorative non-functional buttonholes on jacket sleeves. The machine is based on the well known AMF Reece S-4000 concept.
High speed electronically controlled chainstitch imitation sleeve buttonhole machine designed for sewing purely decorative and non-functional buttonholes on jacket sleeves. The chainstitch imitation sleeve buttonhole machine is programmable to sew automatically up to 8 imitation buttonholes at specific distances between each buttonhole. The machine clamps can be set to sew imitation buttonholes at an angle of 0 to 30 degree from a sleeve cuff. The chainstitch imitation sleeve buttonhole machine is offered with large touch screen display that uses easily understood symbols and graphics to simplify the adjustments. The optional laser lights mark the position of the sleeve at the beginning of sewing cycle. The high sewing speed up to 3800 spm and the short sewing cycle increase productivity and the single pedal electronic start reduces operator fatigue. The S-4002 ISBH+I 30° single thread chainstitch machine is offered with submerged sewing head that allows the operator to handle the garment more ergonomically with less operator‘s fatigue.
Main features
Utilizing powerful encoders stepper-motors ensures exact placement of individual stitches and brings more freedom in buttonhole design for user.
Electronic feeding further eliminates several mechanisms including clutches and gears thus reducing necessary maintenance and extending machine life-time
The Appearance of ImitationSleeve Buttonhole is different to a normal buttonhole which is squared at both ends. The ISBH non-cut buttonhole has one squared end and the other „show“ end has less stitches which gives a rounded effect. This is achieved by the use of a special cam. On the finished garment the button is sewn over the squared end.
