S-4000 ISBH With Indexer
– Chainstitch Straight Buttonhole Machine For Sewing Imitation Sleeve Buttonholes
S-4000 ISBH+I Angle up to 6° (Pneumatic version)
S-4000 ISBH+I Straight (Stepper motor version)
S-4000 ISBH+I Angle up to 20° (Stepper motor version)
- patented AMF Reece mechanism
- designed for sewing purely decorative and non-functional buttonholes on jacket sleeves
- chainstitch imitation sleeve buttonholes machine is programmable to sew automatically up to 8 imitation buttonholes
- sewing speed and indexer are programmable on the control panel
- made in Czech Republic

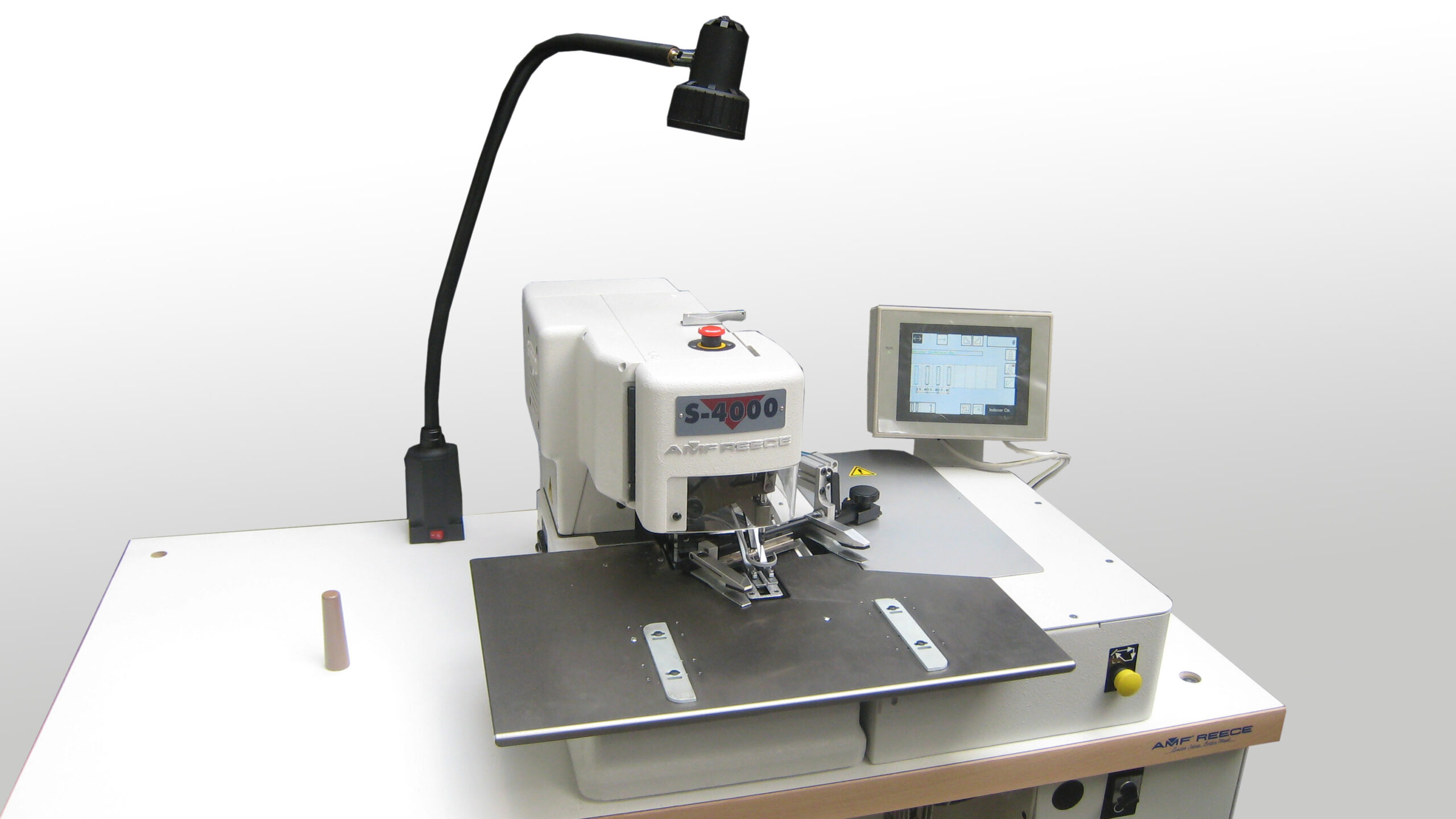

High speed electronically controlled chainstitch imitation sleeve buttonhole machine designed for sewing purely decorative and non-functional buttonholes on jacket sleeves. The chainstitch imitation sleeve buttonhole machine is programmable to sew automatically up to 8 imitation buttonholes at specific distances between each buttonhole. The machine clamps can be set to sew imitation buttonholes at an angle of 0 to 20 degree from a sleeve cuff, depends on the choice of model. The chainstitch imitation sleeve buttonhole machine is offered with large touch screen display that uses easily understood symbols and graphics to simplify the adjustments. The optional laser lights mark the position of the sleeve at the beginning of sewing cycle. The high sewing speed up to 3800 spm and the short sewing cycle increase productivity and the single pedal electronic start reduces operator fatigue.
Main features
The Appearance of Imitation Sleeve Buttonhole is different to a normal buttonhole which is squared at both ends. The ISBH non-cut buttonhole has one squared end and the other „show“ end has less stitches which gives a rounded effect. This is achieved by the use of a special cam. On the finished garment the button is sewn over the squared end.
Optional Accessories
Laser Light System for S-4000 ISBH Indexer model that marks the positon of the sleeve at the
beginning of sewing cycle.
Different Buttonhole Shapes can be sewn with other two cams that can be ordered extra from AMF Reece. The machine sis supplied with the standard cam.
Application
The no-cut buttonhole is used on the sleeves of men’s and women’s jackets, suits and sport coats.
